Predictions must be imported to Active, before you can use the Predictions feature on the Explorer page and the Model Evaluation page.
Encord Active enables you to visualize the important performance metrics (Average-Precision (mAP), Average-Recall (mAR), F1, True Positive Count, False Positive Count, False Negative Count) for your model. Performance metrics can be visualized based on different classes and intersection-over-Union (IoU) thresholds.

​
Model Prediction Support

Prediction TypeSupport
Bounding BoxFull support
Rotatable Bounding BoxFull support
PolygonFull support
BitmaskFull support
PolylineTP and FP support coming soon
KeypointTP and FP support coming soon
Dragging the IOU slider changes the scores. You can also choose to see the aggregate score for certain classes by selecting them in the drop-down.

​
How are Prediction Metrics calculated?

Model performance metrics—such as mAP, mAR, Accuracy, and F1-score—and prediction types (True Positive, False Positive, False Negative) are computed for bounding boxes, polygons (segmentations), and bitmasks. Annotate’s labels are treated as the ground truth for evaluating your imported predictions.
  1. Label Rendering: Ground-truth labels are rendered into bitmasks, and all IoU (Intersection over Union) calculations are performed on these bitmasks.
  2. Prediction Matching: Each prediction is matched to the closest ground-truth label based on IoU.
  3. Confidence Filtering: Predictions with confidence scores below the specified threshold are discarded.
  4. IoU Thresholding: For a ground-truth label, the prediction with the highest confidence and an IoU exceeding the threshold is selected as the True Positive (TP). If no such prediction exists, no TP is assigned for that ground-truth label.
  5. False Positives (FP): Predictions that are not matched to any ground-truth label are classified as False Positives.
When multiple predictions are associated with a single ground-truth label, only one can be marked as the True Positive (TP). The prediction with the highest confidence among those exceeding the IoU threshold is chosen.This ensures a strict one-to-one relationship between ground-truth labels and True Positives.

​
Important Information

Before going any further, you need to be aware of the differences in behavior between pycoco/TorchMetrics map calculations and Encord’s. The comparisons here were done using ‘torchmetrics=1.2.1’, ‘pycocotools=2.0.6’, and Encord Active. Difference 1 TorchMetrics ignores a class in the mAP calculation (average AP over classes), if there are no ground truth labels of that class in all the images being looked at. Active includes classes in the mAP calculation even if there are no ground truth labels of that class in all the images being looked at Why did we do this? Because Encord Active is inherently dynamic and meant for decomposing model performance based on arbitrary data subsets. This makes model performance more transparent because predictions are not excluded from the performance scores. Difference 2 There is a slight difference in the TP matching algorithm. Encord does not have a prediction match against a different ground truth with a smaller IOU than the initial candidate ground truth if some other prediction with higher confidence matches as a true-positive against that original ground truth, but torchmetrics does. This can result in differences compared to TorchMetrics. The differences become apparent with smaller IOU thresholds, IOU values closer to 1.0 should have a progressively smaller divergence approaching 0 when very close to 1.0. Why did we do this? The difference results in performance improvements when dynamically assigning prediction true-positives depending on the selected IOU threshold.

​
Model Performance

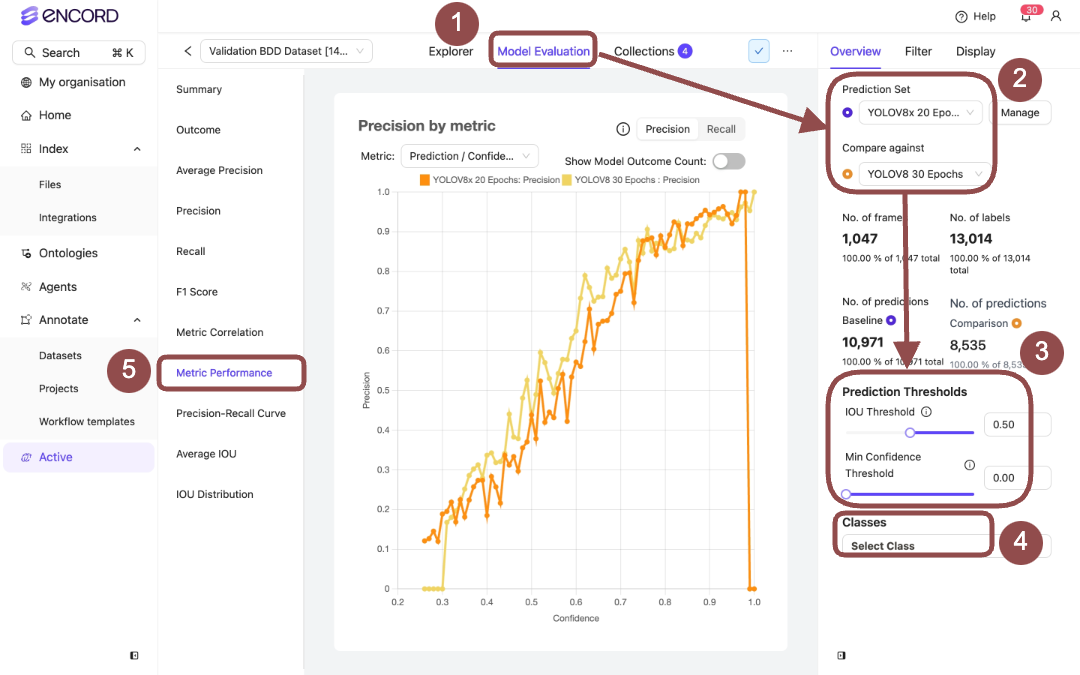

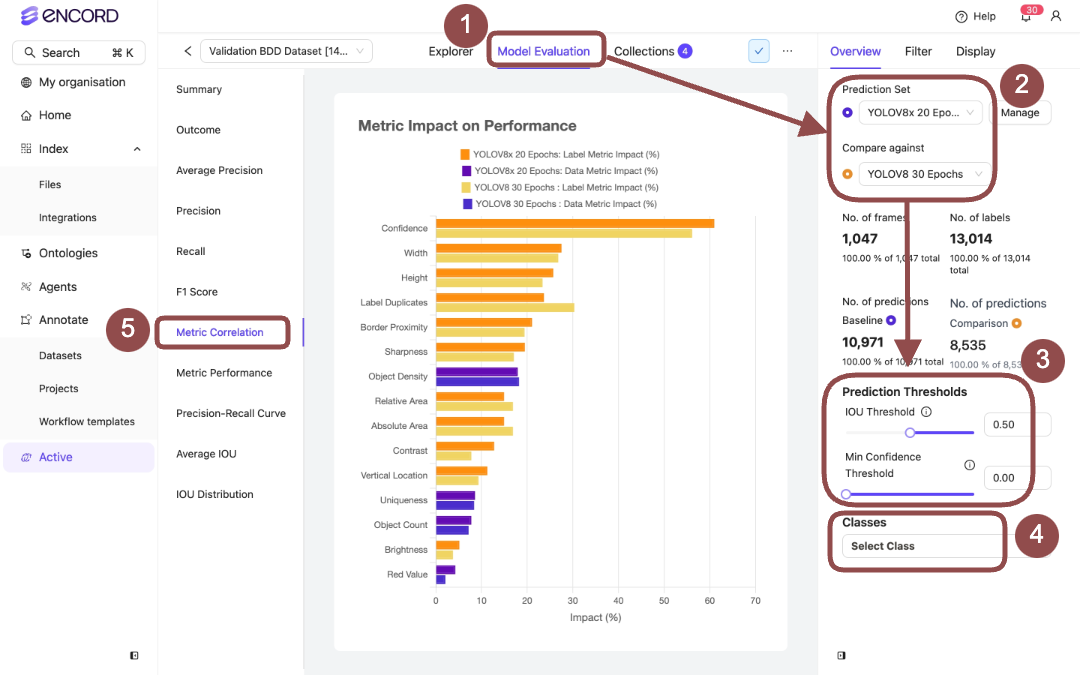

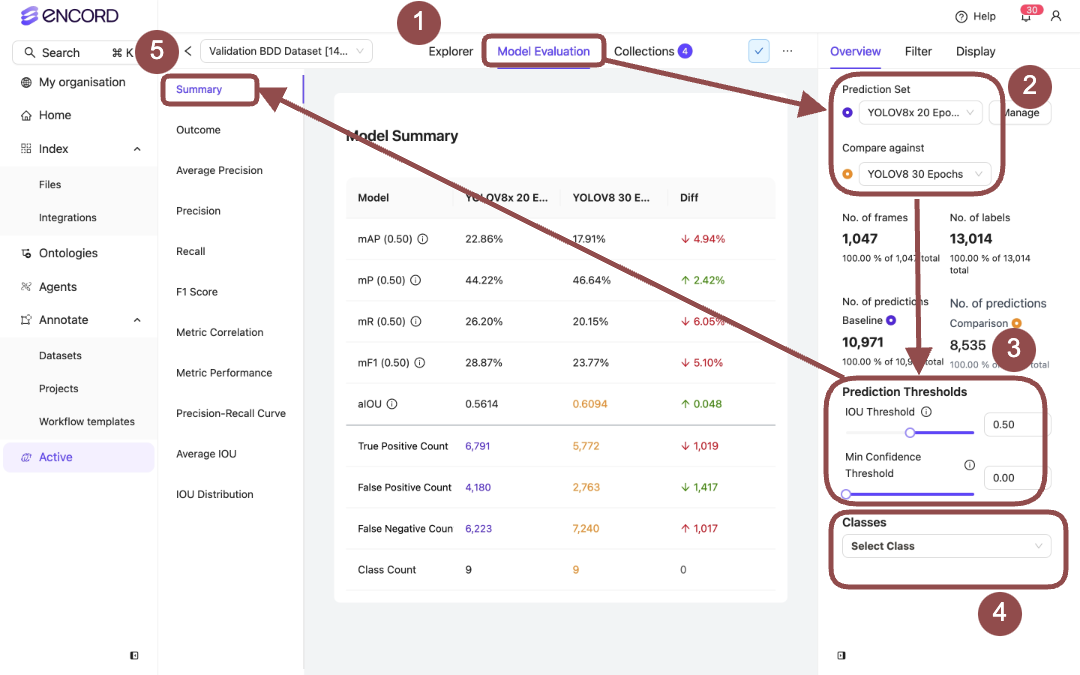

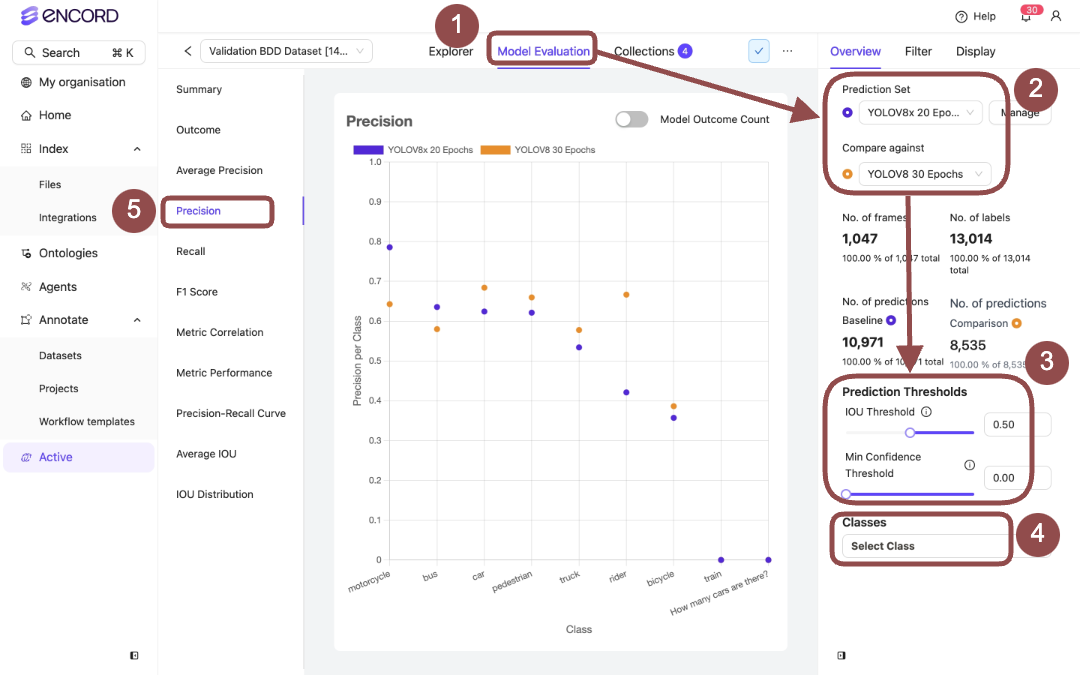

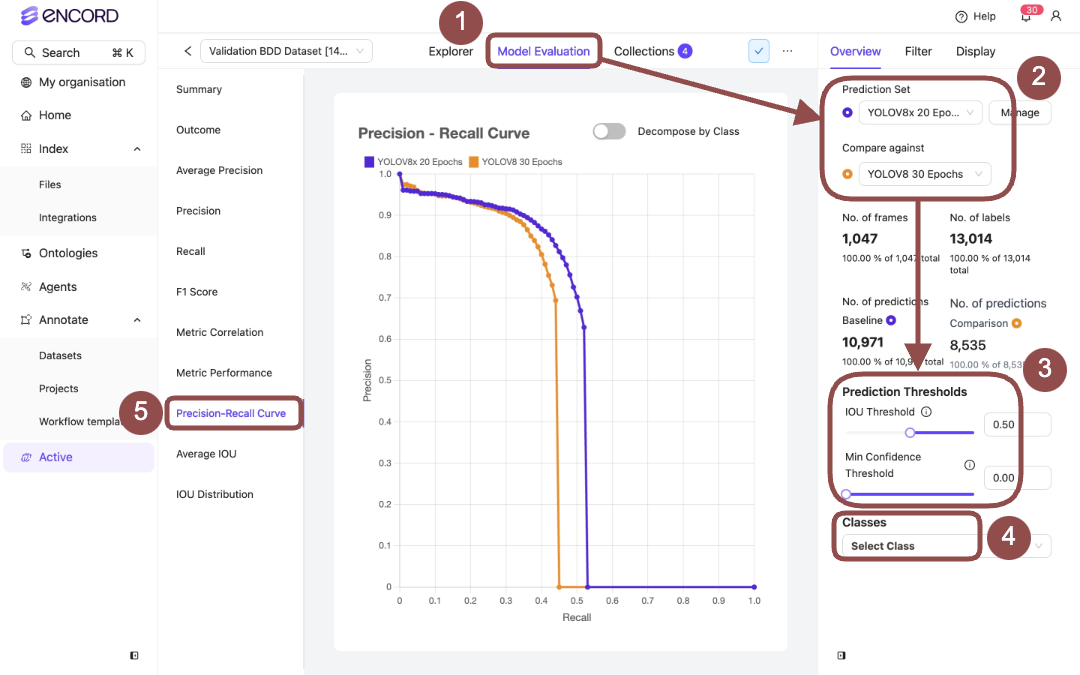

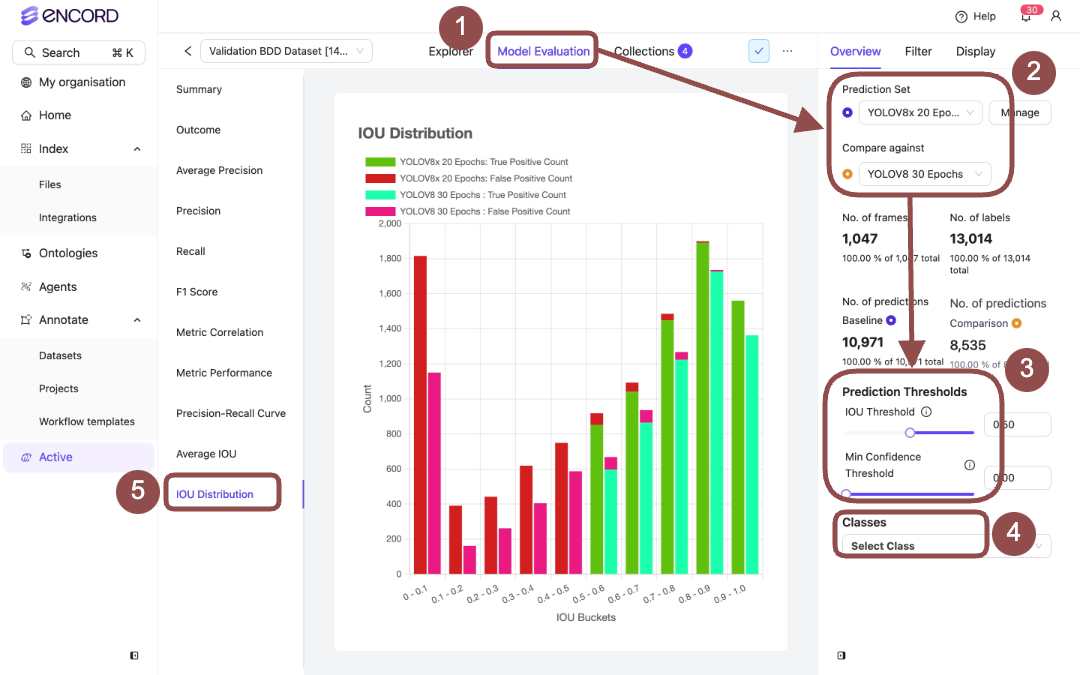

Model Performance - Summary Model Performance Model Performance - Outcome Model Performance Model Performance - Average Precision Model Avg Precision Model Performance - Precision Model Precision Model Performance - Recall Model Recall Model Performance - F1 Score Model F1 Score Model Performance - Metric Correlation Specifies the impact specific data and label metrics have on your model performance. Model Metric Correlation Model Performance - Metric Performance Model Metric Performance Model Performance - Precision-Recall Curve Model Precision-Recall Curve Model Performance - Average IOU Model Average IOU Model Performance - IOU Distribution Model IOU Distribution Model Performance - Confusion Matrix Model Confusion Matrix

​

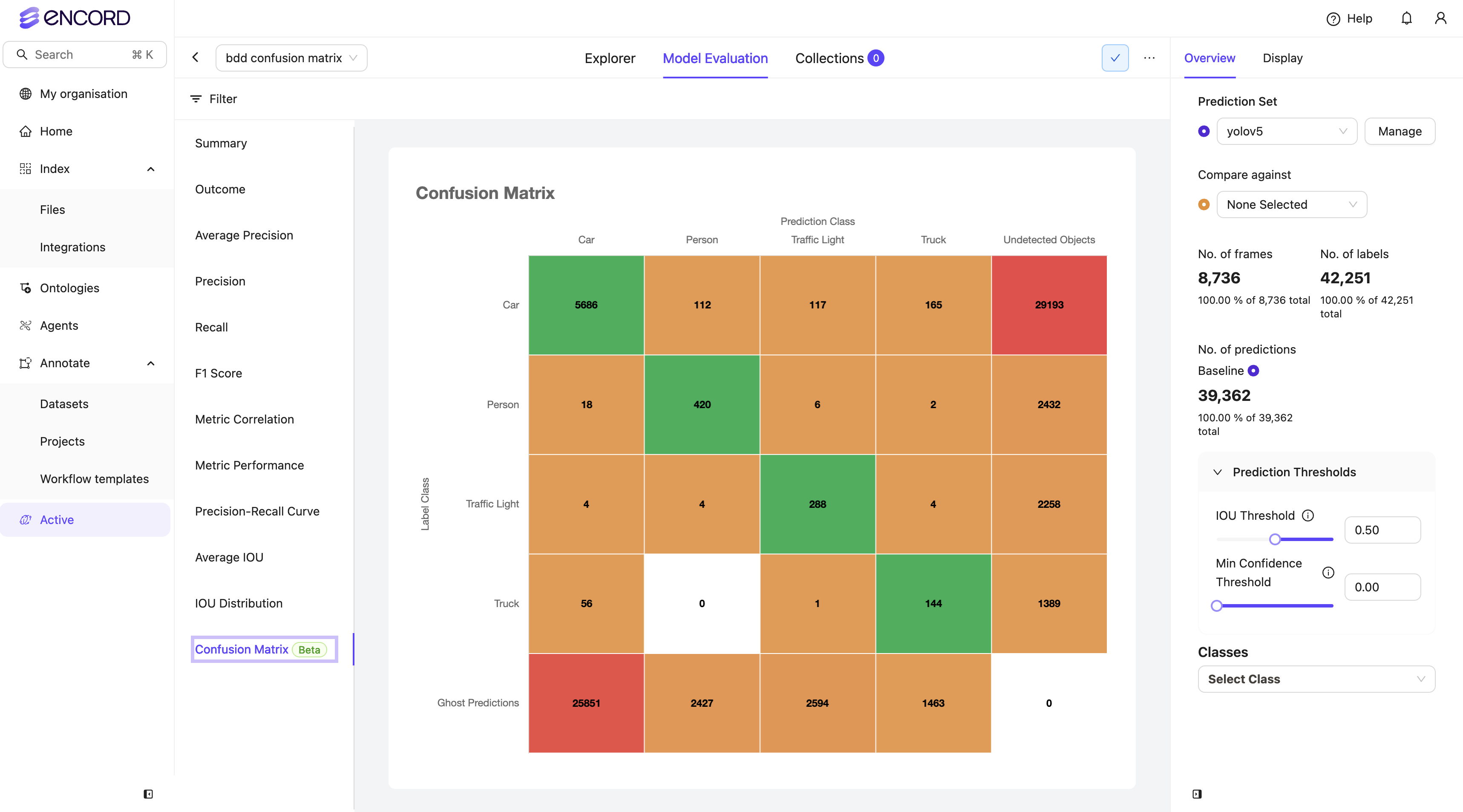

Object Confusion Matrix Matching Algorithm

The Object Confusion Matrix uses a distinct matching algorithm compared to other platform metrics. Here’s how it differs:
  • Standard Platform Matching: For most metrics, the matching algorithm processes data item by item and class by class:
    • Labels and predictions are grouped by class
    • Only labels/predictions within the same class are compared
    • This approach is essential for standard object detection workflows
  • Confusion Matrix Matching: For the object confusion matrix:
    • All ground truths and predictions are processed together, regardless of class
    • The matching algorithm receives the complete set of labels and predictions
    • This approach helps evaluate model performance in multi-class scenarios
    • Enables identification of cross-class confusion and areas needing improvement
The matching algorithm can be viewed as a black box that takes ground truths and predictions as input and outputs True Positives (TP), False Positives (FP), and False Negatives (FN).

​
