Custom Metadata in Active

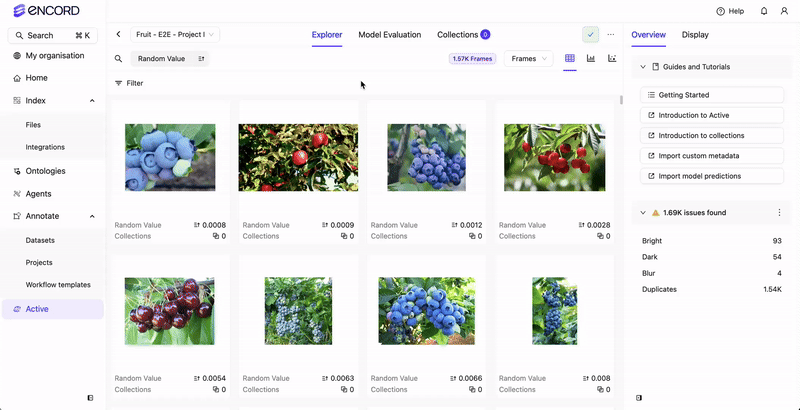

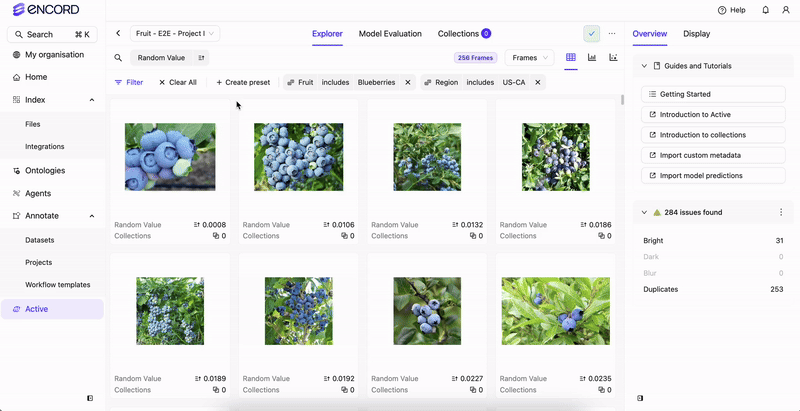

Active and Index support filtering, creating Collections, and by extension, creating Datasets and Projects based on the custom metadata on your data.
Prereqs
Before you can filter your data or create a Collection based on your data’s custom metadata, the custom metadata must exist in your Annotate Project.
clientMetadata
), which is the metadata associated with individual data units. This is distinct from videoMetadata
that is used to specify video parameters when using Strict client-only access. It is also distinct from patient metadata in DICOM files.Custom metadata (clientMetadata
) is accessed by specifying the dataset using the <dataset_hash>. All Projects that have the specified Dataset attached contain custom metadata.
READ THIS FIRST
While not required, we strongly recommend importing a metadata schema before importing custom metadata into Encord. The process we recommend:
If a metadata schema already exists, you can import metadata. You can run a small piece of code to verify that a metadata schema exists.
Metadata schema
Before importing your custom metadata to Encord, we recommend that you import a metadata schema. Encord uses metadata schemas to validate custom metadata uploaded to Encord and to instruct Index and Active how to display your metadata.
Benefits of Using a Metadata Schema
Using a metadata schema provides several benefits:
- Validation: Ensures that all custom metadata conforms to predefined data types, reducing errors during data import and processing.
- Consistency: Maintains uniformity in data types across different datasets and projects, which simplifies data management and analysis.
- Filtering and Sorting: Enhances the ability to filter and sort data efficiently in the Encord platform, enabling more accurate and quick data retrieval.
Metadata Schema Table
Use add_scalar
to add a scalar key to your metadata schema.
Scalar Key | Description | Display Benefits |
---|---|---|
boolean | Binary data type with values “true” or “false”. | Filtering by binary values |
datetime | ISO 8601 formatted date and time. | Filtering by time and date |
number | Numeric data type supporting float values. | Filtering by numeric values |
uuid | Customer specified unique identifier for a data unit. | Filtering by customer specified unique identifier |
varchar | Textual data type. Formally string . string can be used as an alias for varchar , but we STRONGLY RECOMMEND that you use varchar . | Filtering by string. |
text | Text data with unlimited length (example: transcripts for audio). Formally long_string . long_string can be used as an alias for text , but we STRONGLY RECOMMEND that you use text . | Storing and filtering large amounts of text. |
Use add_enum
and add_enum_options
to add an enum and enum options to your meta data schema.
Key | Description | Display Benefits |
---|---|---|
enum | Enumerated type with predefined set of values. | Facilitates categorical filtering and data validation |
Use add_embedding
to add an embedding to your metadata schema.
Key | Description | Display Benefits |
---|---|---|
embedding | 512 dimension embeddings for Active, 1 to 4096 for Index. | Filtering by embeddings, similarity search, 2D scatter plot visualization (Coming Soon) |
Incorrectly specifying a data type in the schema can cause errors when filtering your data in Index or Active. If you encounter errors while filtering, verify your schema is correct. If your schema has errors, correct the errors, re-import the schema, and then re-sync your Active Project.
Import your metadata schema to Encord
# Import dependencies
from encord import EncordUserClient
SSH_PATH = "<file-path-to-ssh-private-key>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH
)
user_client.set_client_metadata_schema_from_dict({'metadata_1': 'data type', 'metadata_2': 'data type', 'metadata_3': 'data type'})
# Import dependencies
from encord import EncordUserClient
SSH_PATH = "/Users/chris-encord/ssh-private-key.txt"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH
)
user_client.set_client_metadata_schema_from_dict({'captured_at': 'datetime', 'city': 'datetime', 'dark': 'boolean'})
Verify your schema
After importing your schema to Encord we recommend that you verify that the import is successful. Run the following code to verify your metadata schema imported and that the schema is correct.
# Import dependencies
from encord import EncordUserClient
SSH_PATH = "<file-path-to-ssh-private-key>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH
)
schema = user_client.get_client_metadata_schema()
print(schema)
# Import dependencies
from encord import EncordUserClient
SSH_PATH = "/Users/chris-encord/ssh-private-key.txt"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH
)
schema = user_client.get_client_metadata_schema()
print(schema)
Reserved Keywords
Reserved keywords are strings that are set aside for exclusive use. The following keywords are reserved:
keyframes
KEYFRAMES
keyframes
is reserved for use with frames of interest in videos. Specifying keyframes
on specific frames ensures that those frames are imported into Index and Active. That means frames specified using keyframes
are available to filter your frames and for calculating embeddings on your data.
client_metadata = {
"keyframes": [<frame_number>, <frame_number>, <frame_number>, <frame_number>, <frame_number>]
}
client_metadata = {
"keyframes": [13, 17, 19, 23, 127, 149, 307, 557]
}
You can include keyframes
while importing your videos or after you import your videos.
Import keyframes
to specific data units in a folder
This code allows you to import keyframes
on specific videos in Index. This code DOES NOT OVERWRITE all existing custom metadata on a data unit. It does overwrite custom metadata with existing values and adds new custom metadata to the data unit.
# Import dependencies
from encord import EncordUserClient
# Authentication
SSH_PATH = "<private_key_path>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
# Define a dictionary with item UUIDs and their keyframes updates
updates = {
"<data-unit-id>": {"keyframes": [<frame_number>, <frame_number>, <frame_number>, <frame_number>, <frame_number>]},
"<data-unit-id>": {"keyframes": [<frame_number>, <frame_number>, <frame_number>, <frame_number>, <frame_number>]},
"<data-unit-id>": {"keyframes": [<frame_number>, <frame_number>, <frame_number>, <frame_number>, <frame_number>]},
"<data-unit-id>": {"keyframes": [<frame_number>, <frame_number>, <frame_number>, <frame_number>, <frame_number>]}
}
# Update the storage items based on the dictionary
for item_uuid, metadata_update in updates.items():
item = user_client.get_storage_item(item_uuid=item_uuid)
# make a copy of the current metadata and update it with the new metadata
curr_metadata = item.client_metadata.copy()
curr_metadata.update(metadata_update)
# update the item with the new metadata
item.update(client_metadata=curr_metadata)
# Import dependencies
from encord import EncordUserClient
# Authentication
SSH_PATH = "/Users/chris-encord/sdk-ssh-private-key.txt"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
# Define a dictionary with item UUIDs and their keyframes updates
updates = {
"8ad58157-ca74-4ae4-8f37-a0193430bcac": {"keyframes": [13, 17, 19, 23, 127, 149, 307, 557]},
"f165fe81-1956-4347-81ca-3a3b198f3f23": {"keyframes": [10, 110, 210, 320, 430]},
"9bd58157-ca74-4ae4-8f37-a0193431bcba": {"keyframes": [1087, 1549, 2029, 3527]},
"62daaa33-195e-4faf-be5b-8335a239beb6": {"keyframes": [1000, 2001, 3241, 4637, 5431]}
}
# Update the storage items based on the dictionary
for item_uuid, metadata_update in updates.items():
item = user_client.get_storage_item(item_uuid=item_uuid)
# make a copy of the current metadata and update it with the new metadata
curr_metadata = item.client_metadata.copy()
curr_metadata.update(metadata_update)
# update the item with the new metadata
item.update(client_metadata=curr_metadata)
Folders and custom metadata
List custom metadata (Folders)
from encord import EncordUserClient
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "<file-path-to-ssh-private-key-file>"
FOLDER_HASH = "<unique-folder-id>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
items = folder.list_items()
for item in items:
print (item.uuid, item.client_metadata)
from encord import EncordUserClient
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "/Users/chris-encord/sdk-ssh-private-key.txt"
FOLDER_HASH = "2a838557-d6f4-4408-a980-64246dc5c56b"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
items = folder.list_items()
for item in items:
print (item.uuid, item.client_metadata)
Import custom metadata (Folders)
We strongly recommend that you upload your custom metadata to Folders, instead of importing using Datasets. Importing custom metadata to data in folders allows you to filter your data in Index by custom metadata.
print
command after importing or updating your custom metadata.Import custom metadata to specific data units in a Folder
This code allows you to import custom metadata on specific data units in Index. This code OVERWRITES all existing custom metadata on a data unit.
# Import dependencies
from encord import EncordUserClient
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "<file-path-to-ssh-private-key-file>"
FOLDER_HASH = "<unique-folder-id>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
# Define a dictionary with item UUIDs and their respective metadata updates
updates = {
# "<data-unit-id>": {"metadata": "metadata-value"},
# "<data-unit-id>": {"metadata": False},
# "<data-unit-id>": {"metadata": "metadata-value"},
# "<data-unit-id>": {"metadata": True}
}
# Update the storage items based on the dictionary
for item_uuid, metadata in updates.items():
item = user_client.get_storage_item(item_uuid=item_uuid)
item.update(client_metadata=metadata)
# Import dependencies
from encord import EncordUserClient
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "/Users/chris-encord/sdk-ssh-private-key.txt"
FOLDER_HASH = "2a838557-d6f4-4408-a980-64246dc5c56b"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
# Define a dictionary with item UUIDs and their respective metadata updates
updates = {
# "<data-unit-id>": {"metadata": "metadata-value"},
# "<data-unit-id>": {"metadata": False}, # examples
"8ad58157-ca74-4ae4-8f37-a0193430bcac": {"dark": True},
"f165fe81-1956-4347-81ca-3a3b198f3f23": {"light": False},
"9bd58157-ca74-4ae4-8f37-a0193431bcba": {"count": "100"},
"62daaa33-195e-4faf-be5b-8335a239beb6": {"taken_at": "2024-02-24"}
}
# Update the storage items based on the dictionary
for item_uuid, metadata in updates.items():
item = user_client.get_storage_item(item_uuid=item_uuid)
item.update(client_metadata=metadata)
Import custom metadata to all data units in a Folder
This code allows you to update ALL custom metadata on ALL data units in a Folder in Index. This code OVERWRITES all existing custom metadata on a data unit.
# Import dependencies
from encord import EncordUserClient
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "<file-path-to-ssh-private-key-file>"
FOLDER_HASH = "<unique-folder-id>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
items = folder.list_items()
for item in items:
item.update(client_metadata={"metadata": "value", "metadata": "value"})
# Import dependencies
from encord import EncordUserClient
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "/Users/chris-encord/sdk-ssh-private-key.txt"
FOLDER_HASH = "2a838557-d6f4-4408-a980-64246dc5c56b"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
items = folder.list_items()
for item in items:
item.update(client_metadata={"dark": True, "captured_at": "2024-02-24"})
Update custom metadata to specific data units in a folder
This code allows you to update custom metadata on specific data units in Index. This code DOES NOT OVERWRITE all existing custom metadata on a data unit. It does overwrite custom metadata with existing values and adds new custom metadata to the data unit.
# Import dependencies
from encord import EncordUserClient
# Authentication
SSH_PATH = "<private_key_path>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
# Define a dictionary with item UUIDs and their respective metadata updates
updates = {
# "<data-unit-id>": {"metadata": "metadata-value"},
# "<data-unit-id>": {"metadata": False},
# "<data-unit-id>": {"metadata": "metadata-value"},
# "<data-unit-id>": {"metadata": True}
}
# Update the storage items based on the dictionary
for item_uuid, metadata_update in updates.items():
item = user_client.get_storage_item(item_uuid=item_uuid)
# make a copy of the current metadata and update it with the new metadata
curr_metadata = item.client_metadata.copy()
curr_metadata.update(metadata_update)
# update the item with the new metadata
item.update(client_metadata=curr_metadata)
# Import dependencies
from encord import EncordUserClient
# Authentication
SSH_PATH = "/Users/chris-encord/sdk-ssh-private-key.txt"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
# Define a dictionary with item UUIDs and their respective metadata updates
updates = {
# "<data-unit-id>": {"metadata": "metadata-value"},
# "<data-unit-id>": {"metadata": False}, # examples
"8ad58157-ca74-4ae4-8f37-a0193430bcac": {"dark": True},
"f165fe81-1956-4347-81ca-3a3b198f3f23": {"light": False},
"9bd58157-ca74-4ae4-8f37-a0193431bcba": {"count": "100"},
"62daaa33-195e-4faf-be5b-8335a239beb6": {"taken_at": "2024-02-24"}
}
# Update the storage items based on the dictionary
for item_uuid, metadata_update in updates.items():
item = user_client.get_storage_item(item_uuid=item_uuid)
# make a copy of the current metadata and update it with the new metadata
curr_metadata = item.client_metadata.copy()
curr_metadata.update(metadata_update)
# update the item with the new metadata
item.update(client_metadata=curr_metadata)
Bulk custom metadata import to all data units in a Folder
This code allows you to update custom metadata on all data units in a Folder in Index. This code OVERWRITES all existing custom metadata on a data unit.
Using bundle
allows you to update up to 1000 label rows at a time.
# Import dependencies
from encord import EncordUserClient
from encord.http.bundle import Bundle
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "<ssh-private-key>"
FOLDER_HASH = "<unique-folder-id>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
items = folder.list_items()
# Use the Bundle context manager
with Bundle() as bundle:
for item in items:
# Update each item with client metadata
item.update(client_metadata={"metadata-1": "value", "metadata-2": False}, bundle=bundle)
Bulk custom metadata import on specific data units
This code allows you to update custom metadata on specific data units in a Folder in Index. This code DOES NOT OVERWRITE existing custom metadata on a data unit. It does overwrite custom metadata with existing values and adds new custom metadata to the data unit.
Using bundle
allows you to update up to 1000 label rows at a time.
# Import dependencies
from encord import EncordUserClient
from encord.http.bundle import Bundle
from encord.orm.storage import StorageFolder, StorageItem, StorageItemType, FoldersSortBy
# Authentication
SSH_PATH = "<ssh-private-key>"
FOLDER_HASH = "<unique-folder-id>"
# Authenticate with Encord using the path to your private key
user_client: EncordUserClient = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path=SSH_PATH,
)
folder = user_client.get_storage_folder(FOLDER_HASH)
updates = {
# "<data-unit-id>": {"metadata-1": "metadata-value"},
# "<data-unit-id>": {"metadata-2": False},
# "<data-unit-id>": {"metadata-1": "metadata-value"},
# "<data-unit-id>": {"metadata-2": True}
}
# Use the Bundle context manager
with Bundle() as bundle:
for storage_item in folder.list_items():
# Update each item with client metadata
update = updates[storage_item.uuid]
storage_item.update(client_metadata=update, bundle=bundle)
Datasets and custom metadata
We strongly recommend that you upload your custom metadata to Folders, instead of importing using Datasets. Importing custom metadata to data in Folders allows you to filter your data in Index by custom metadata.
List custom metadata (Datasets)
The following code lists the custom metadata of all data units in the specified Dataset. The code prints the custom metadata along with the data unit’s index within the dataset.
# Import dependencies
from encord import EncordUserClient
from encord.client import DatasetAccessSettings
# Authenticate with Encord using the path to your private key
client = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path="<private_key_path>"
)
# Specify a dataset to read or write metadata to
dataset = client.get_dataset("<dataset_hash>")
# Fetch the dataset's metadata
dataset.set_access_settings(DatasetAccessSettings(fetch_client_metadata=True))
# Read the metadata of all data units in the dataset.
for data_unit, data_row in enumerate(dataset.data_rows):
print(f"{data_row.client_metadata} - Data Unit: {data_unit}")
Import custom metadata (Datasets)
Before importing custom metadata to Encord, first import a metadata schema. We strongly recommend that you import your custom metadata to Folders, instead of importing to Datasets. Importing custom metadata to data in folders allows you to filter your data in Index by custom metadata.
Import custom metadata to a specific data unit in your Annotate Project
You can import custom metadata (clientMetadata
) to specific data units in the dataset.
# Import dependencies
from encord import EncordUserClient
from encord.client import DatasetAccessSettings
# Authenticate with Encord using the path to your private key
client = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path="<private_key_path>"
)
# Specify a dataset to read or write metadata to
dataset = client.get_dataset("<dataset_hash>")
# Fetch the dataset's metadata
dataset.set_access_settings(DatasetAccessSettings(fetch_client_metadata=True))
# Add metadata to a specific data unit by replacing <data unit number> with the number of the data unit
data_row = dataset.data_rows[<data unit number>]
# Replace {"my": "metadata"} with the metadata you want to add
data_row.client_metadata= {"my": "metadata"}
data_row.save()
print(data_row.client_metadata)
Import custom metadata (clientMetadata
) to all data units in a dataset
The following code adds the same custom metadata (clientMetadata
) to each data unit in the specified dataset. The code prints the custom metadata along with the data units index within the dataset, so that you can verify that the custom metadata was set correctly.
# Import dependencies
from encord import EncordUserClient
from encord.client import DatasetAccessSettings
# Authenticate with Encord using the path to your private key
client = EncordUserClient.create_with_ssh_private_key(
ssh_private_key_path="<private_key_path>"
)
# Specify a dataset to read or write metadata to
dataset = client.get_dataset("<dataset_hash>")
# Fetch the dataset's metadata
dataset.set_access_settings(DatasetAccessSettings(fetch_client_metadata=True))
# Add metadata to all data units in the dataset.
# Replace {"my": "metadata"} with the metadata you want to add
for data_unit, data_row in enumerate(dataset.data_rows):
data_row.client_metadata = {"my": "metadata"}
data_row.save()
print(f"{data_row.client_metadata} - Data Unit: {data_unit}")
Custom Metadata in Active
Once your custom metadata is included in your Annotate Project (Folder or Dataset), you can create Collections based on your custom metadata and then send those Collections to Annotate.
-
Click the Project once import completes.
The Project opens with the Explorer page displaying. -
Filter the Project Data, Labels, or Predictions in the Explorer using a Custom Metadata filter.
-
Continue searching, sorting, and filtering your data/labels/predictions until you have the subset of the data you need.
-
Select one or more of the images in the Explorer workspace.
A ribbon appears at the top of the Explorer workspace. -
Click Select all to select all the images.
-
Click Add to a Collection.
-
Click New Collection.
-
Specify a meaningful title and description for the Collection.
The title specified here is applied as a tag/label to every selected image.
Was this page helpful?
